CURVAS CONDUIT RGS
| MEDIDA | DIM A | DIM R |
| 1/2" | 2.00" / 2.03" | 4.00" / 4.04" |
| 3/4" | 2.00" / 2.03" | 4.50" / 4.54" |
| 1" | 2.25" / 2.28" | 5.75" / 5.80" |
| 1 - 1/4" | 2.80" / 2.83" | 7.25" / 7.30" |
| 1 - 1/2" | 2.80" / 2.83" | 8.25" / 8.31" |
| 2" | 2.80" / 2.83" | 9.50" / 9.56" |
| 2 - 12" | 4.00" / 4.05" | 10.50" / 10.56" |
| 3" | 5.00" / 5.05" | 13.00" / 13.07" |
| 3 - 1/2" | 6.00" / 6.06" | 15.00" / 15.08" |
| 4" | 6.75" / 6.81" | 16.00" / 16.08" |
UNIÓN CONDUIT RGS| MEDIDA | DIM A | DIM B |
| 1/2" | 1 | 1 - 5/8" |
| 3/4" | 1 - 1/4" | 1 - 5/8" |
| 1" | 1 - 1/2" | 2" |
| 1 - 1/4" | 1 - 7/8" | 2 - 1 - 16" |
| 1 - 1/2" | 2 - 1/8" | 2 - 1/8" |
| 2" | 2 - 5/8" | 2 - 3/16" |
| 2- 1/2" | 3 - 13/16" | 3 - 3/16" |
| 3" | 3 - 13/16" | 3 - 1/4" |
| 3 - 1/2" | 4 - 1/2" | 3 - 7/16" |
| 4" | 4 - 13/16" | 3 - 1/2" |
| 5" | 6" | 3 - 15/16" |
| 6" | 7 - 1/8" | 4 - 5/16" |

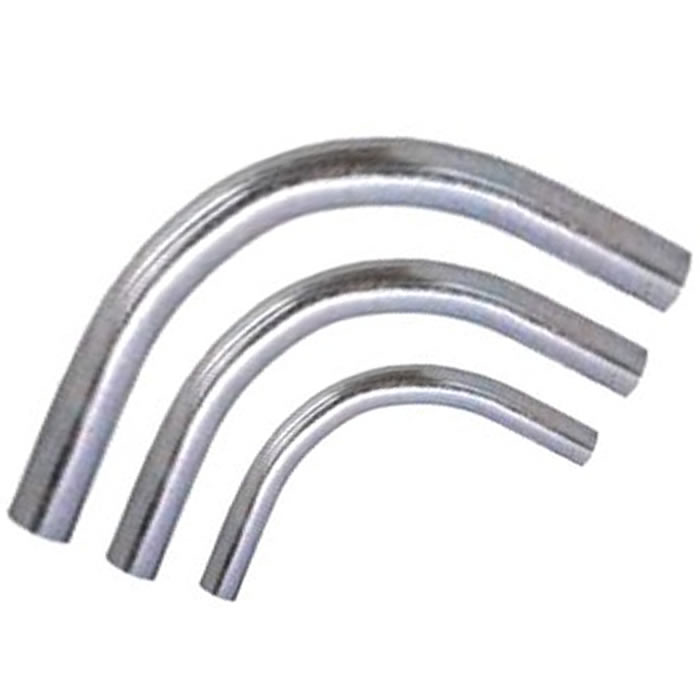

CURVA CONDUIT EMT| MEDIDA | DIM A | DIM B | DIM C |
| 1/2" | 6 - 3/8" | 6 - 3/8" | 4 - 1/4" |
| 3/4" | 7 - 1/2" | 7 -1/2" | 4 - 1/2" |
| 1" | 9 - 1/2" | 9 - 1/2" | 6" |
| 1 - 1/4" | 11 - 1/4" | 11 - 1/4" | 8" |
| 1 - 1/2" | 13" | 13" | 9 - 1/8" |
| 2" | 16" | 16" | 11 - 1/2" |
| 2 - 1/2" | 18 - 1/2" | 18 - 1/2" | 11 - 3/4" |
| 3" | 22 - 1/4" | 22 - 1/4" | 14 - 1/4" |
| 3 - 1/2" | 25" | 25" | 17" |
| 4" | 26" | 26" | 18 - 1/4" |

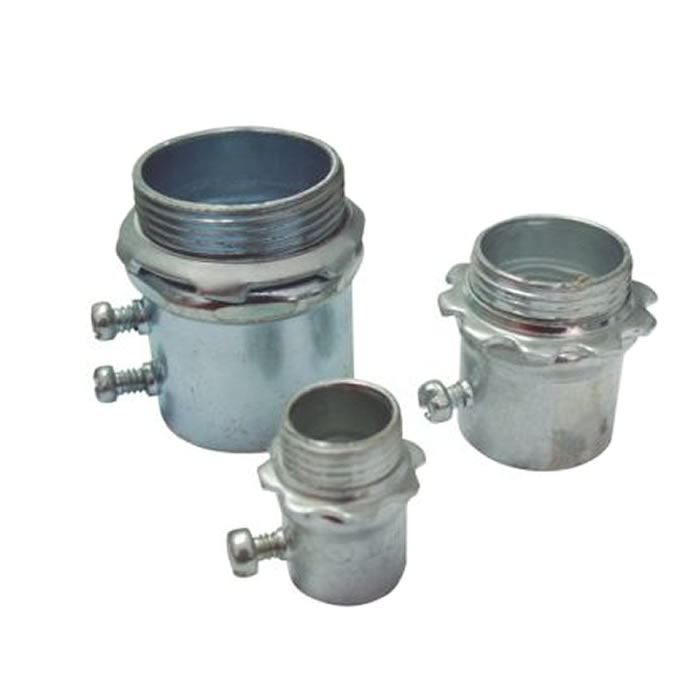

CONECTOR CONDUIT EMT| MEDIDA | DIM A | DIM B |
| 1/2" | 7/8" | 1 - 1/2" |
| 3/4" | 1 - 1/8" | 1 - 9/16" |
| 1" | 1 - 3/8" | 1 - 13/16" |
| 1 - 1/4" | 1 - 3/4" | 2 - 5/16" |
| 1 - 1/2" | 2" | 2 - 1/4" |
| 2" | 2 - 7/16" | 2 - 3/8" |
| 2 - 1/2" | 3 - 1/8" | 3 - 3/16" |
| 3" | 3 - 3/4" | 3 - 13/16" |
| 3 - 1/2" | 4 - 1/4" | 4 - 5/16" |
| 4" | 4 - 3/4" | 4- 7/8" |

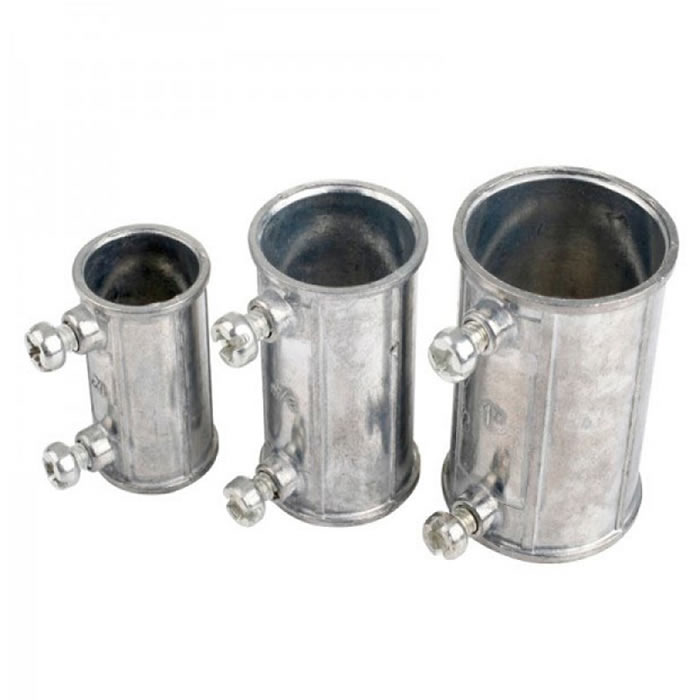

UNIÓN CONDUIT EMT| MEDIDA | DIM A | DIM B |
| 1/2" | 7/8" | 1 - 5/8" |
| 3/4" | 1 - 1/8" | 1 - 7/8" |
| 1" | 1 - 3/16" | 2 - 5/16" |
| 1 - 1/4" | 1 - 3/4" | 2 - 3/4" |
| 1 - 1/2" | 2" | 3" |
| 2" | 2 - 7/16" | 3 - 1/4" |
| 2 - 1/2" | 3 - 1/8" | 4" |
| 3" | 3 - 3/4" | 4 - 1/4" |
| 3 - 1/2" | 4 - 1/4" | 4 - 1/2" |
| 4" | 4 - 3/4" | 4 - 3/4" |
